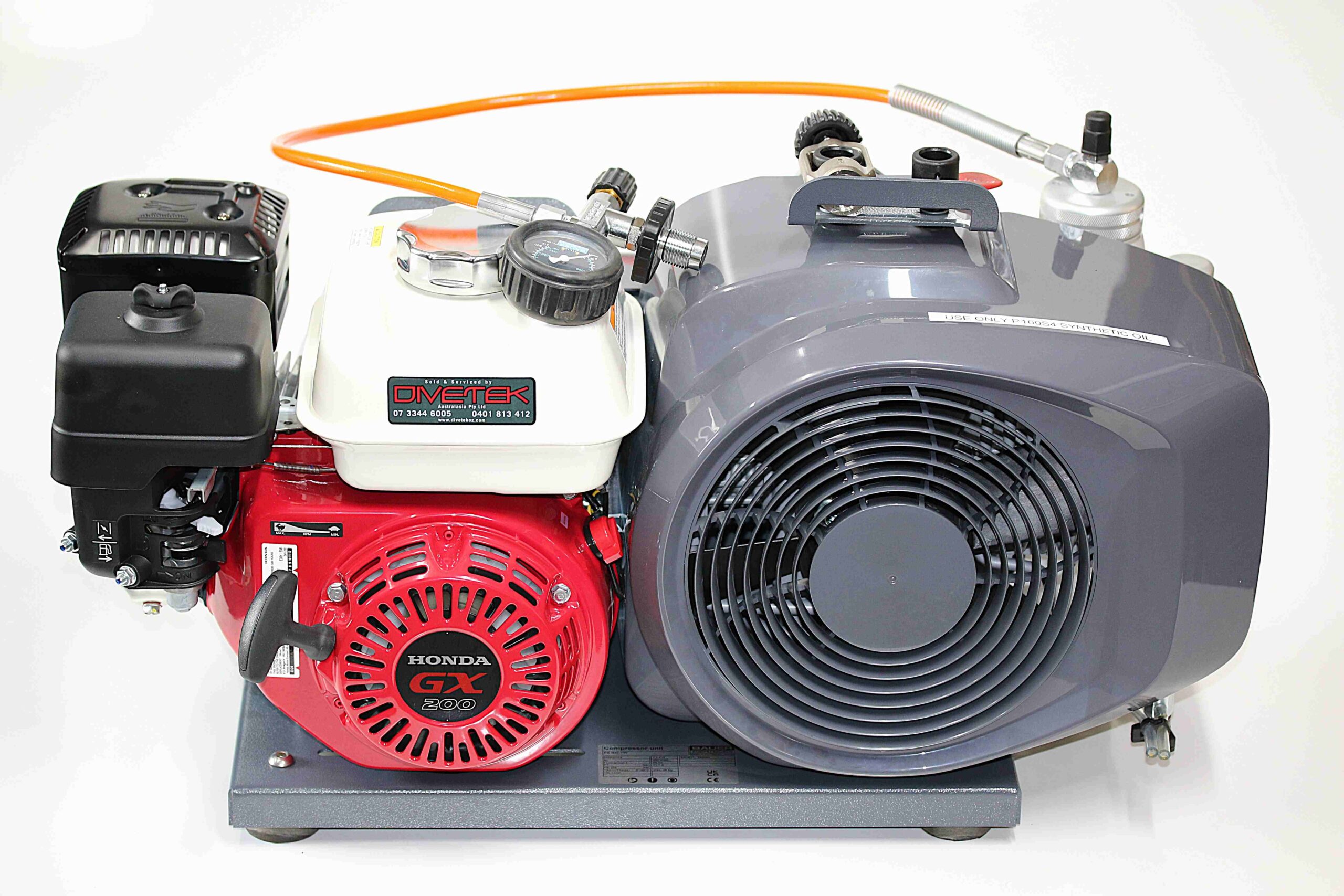

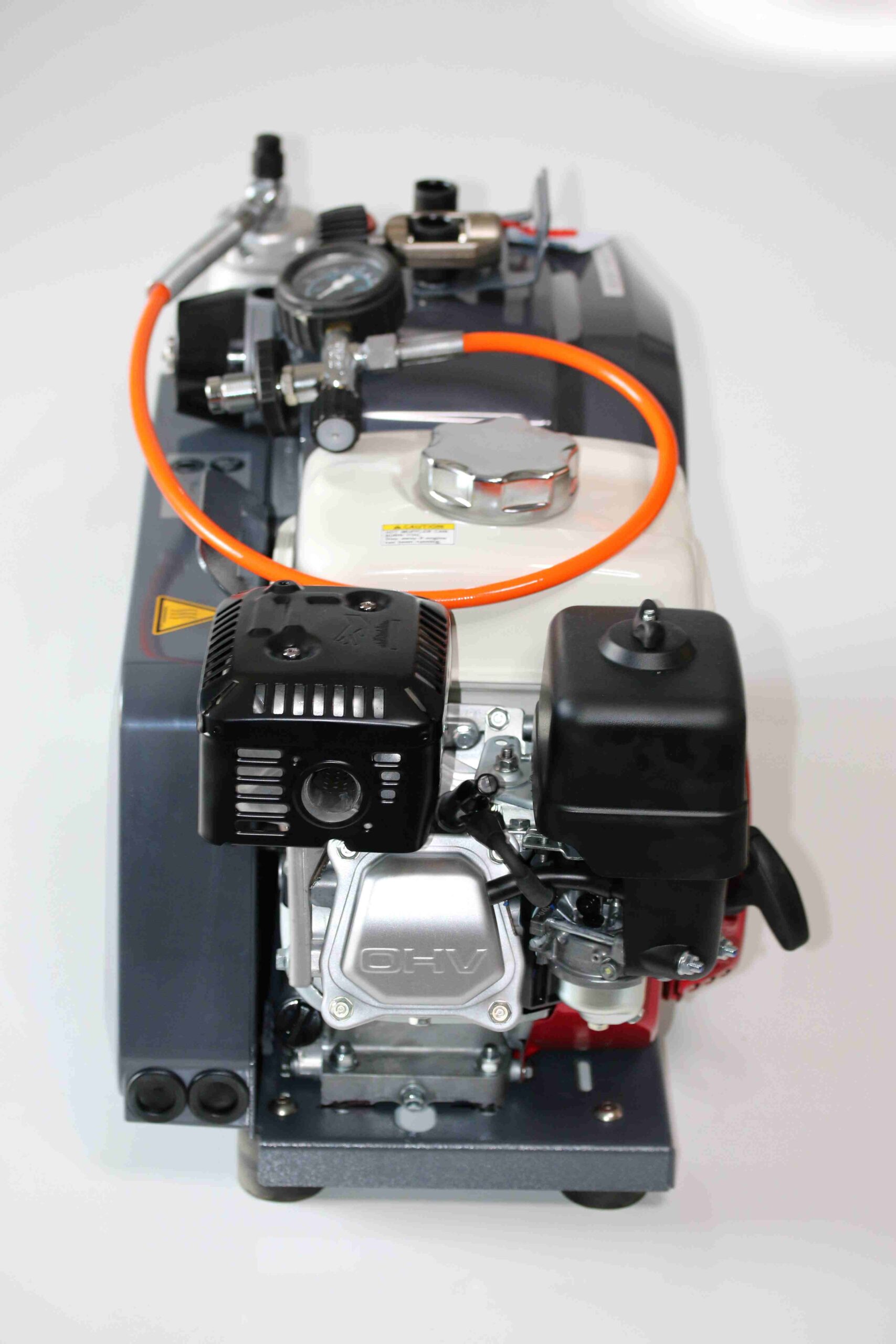

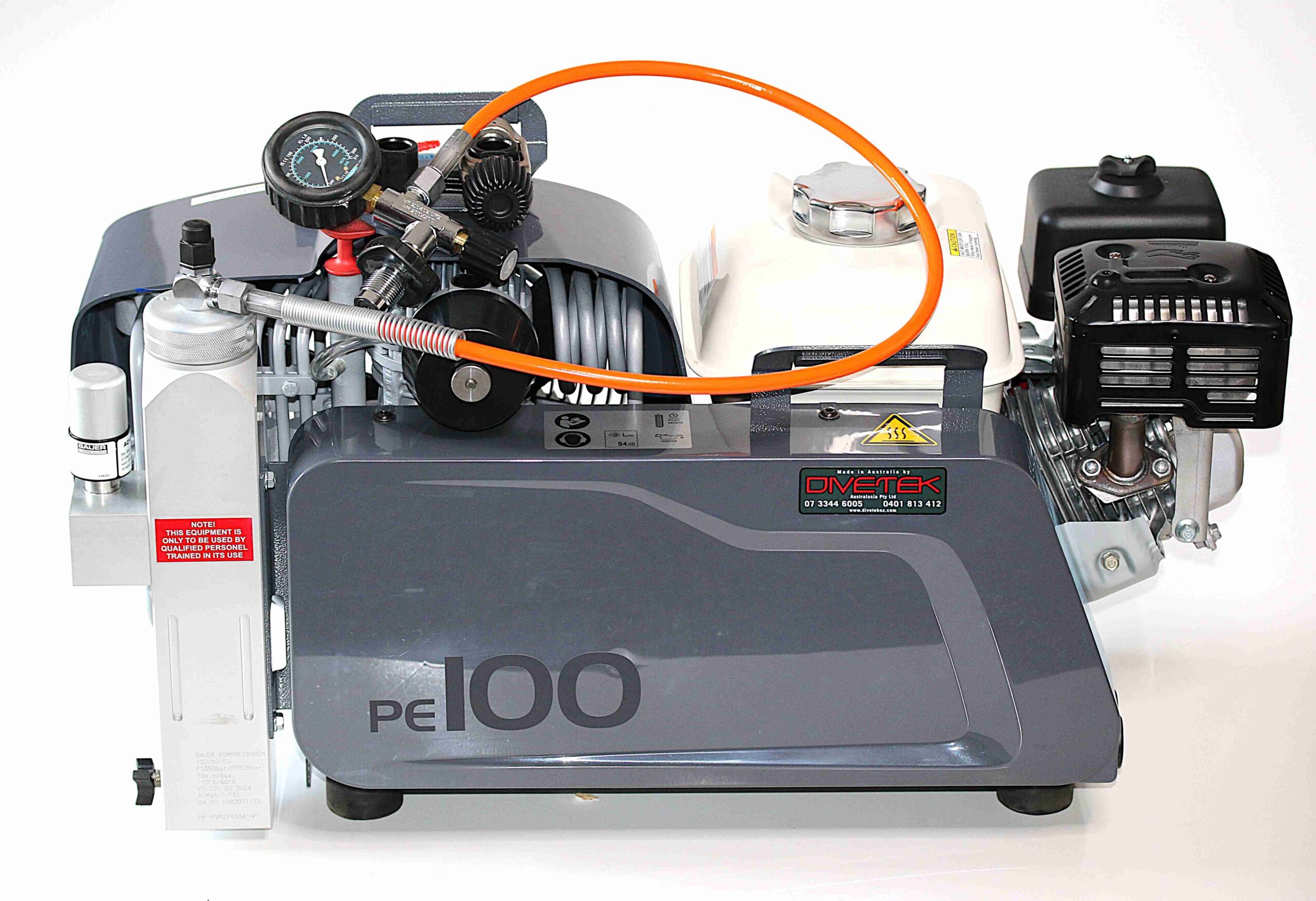

PE 100 high-pressure compressor
Robust technology in a compact design
The PE 100 is by far the smallest and lightest unit in the PE series.
Its possible uses are virtually unlimited: with three drive options (petrol, three-phase current and alternating current), it is suitable for use in all manner of different applications on land or in vehicles.
Ideal as a breathing air compressor for groups of divers and fire crews or for the rapid filling of cartridges for sport shooting and paintball.
In the petrol version it is even capable of operation in the most remote of locations without a power supply. With an AC drive, it is even suitable for connection to a standard domestic power supply.
This lightweight and compact unit is easy to transport and will fit in almost any car boot.
Dimensions on a very small scale and sophisticated technology make our most compact mobile breathing air compressor ideal for shipping, as a diving compressor, in respiratory applications, and as a compressor for paintball and sport shooting. With a special sport shooting version available as well, the PE 100 also replaces the smaller S 30 shooting compressor
Legendary reliability: Thanks to the world-proven compressor block of the PE 100. The high-pressure compressor block is the “beating heart” of the PE 100 compressor. Epitomising reliability and having proven its worth in practice for decades, more than 100,000 units have been sold the world over. Plateau-honed cylinders and a perfect fit cooling system enable the compressor block to be used in a wide variety of application ranges. The easily accessible oil filler neck makes oil changes easy. An oil dipstick is provided so that the oil level can be checked. Long oil change intervals and wear-resistant piston rings reduce running costs to an absolute minimum.

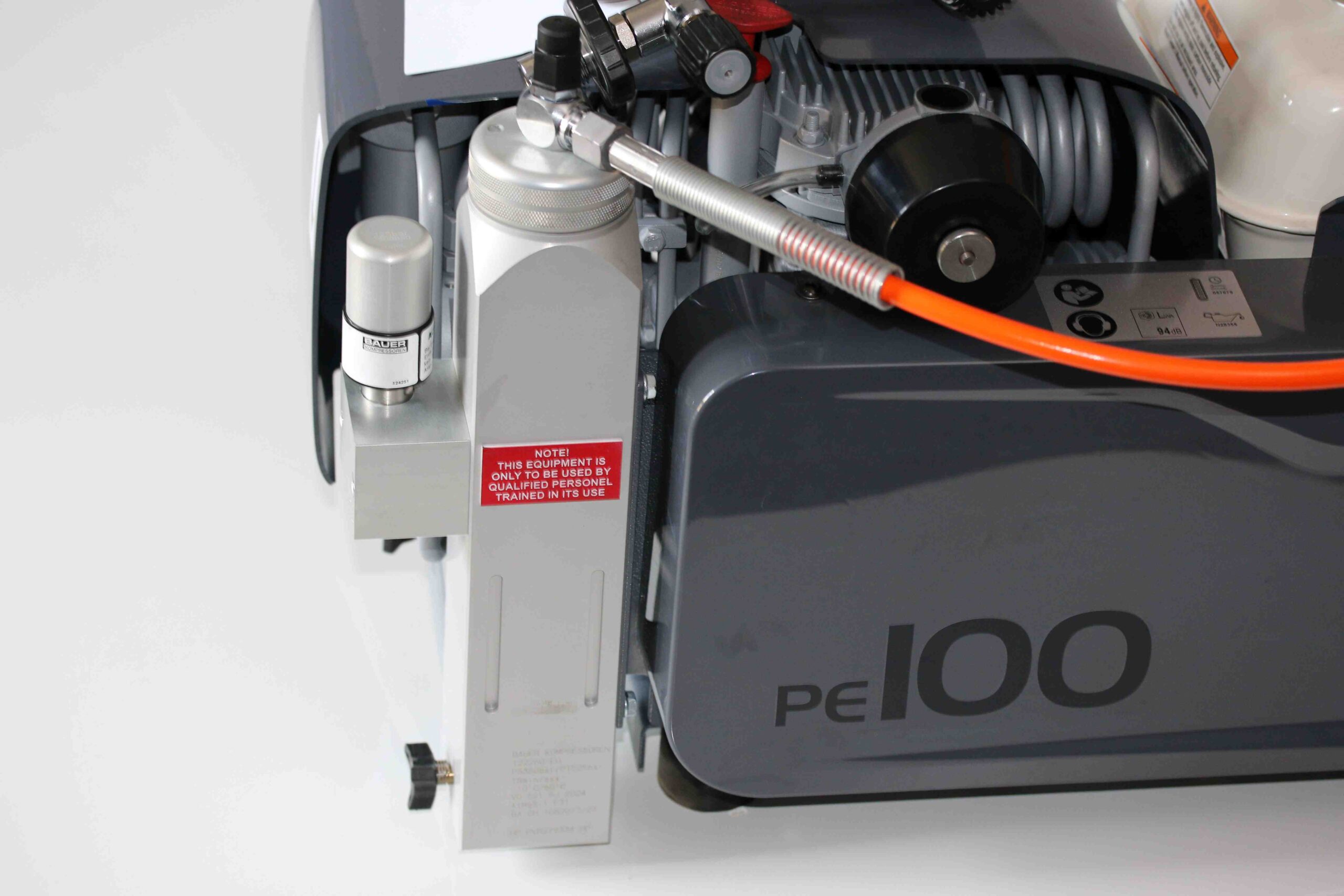

Clean breathing air: Thanks to advanced filter technology from BAUER and the P 11 filter system developed specifically for the PE 100 When used in conjunction with original BAUER filter cartridges, the P 11 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 140 m³ of air can be treated.
Global BAUER support network Supplying spare parts and maintenance supplies in next to no time for many decades
Poseidon Edition PE100
100 litres per minute fill rate (3.5 cfm)
225 Bar working pressure
P11 filtration system
3 PHASE Drive unit 400V 50Hz 2.2 KW
3 Stages
2300 rpm
44kgs 66cm x 35cm x 42cm
PLEASE Remember to select your final working pressure and drive type from the drop downs when ordering your compressor
If you are unsure of choices and options please feel free to contact our friendly and experienced staff to assist you in choosing the right compressor anmd specifications for your current and ongoing needs
¹ If the units are maintained and installed correctly as described in the operating instructions or user manual and if the concentration of CO2 in the intake air does not exceed the values specified in the applicable standard for breathing air.
